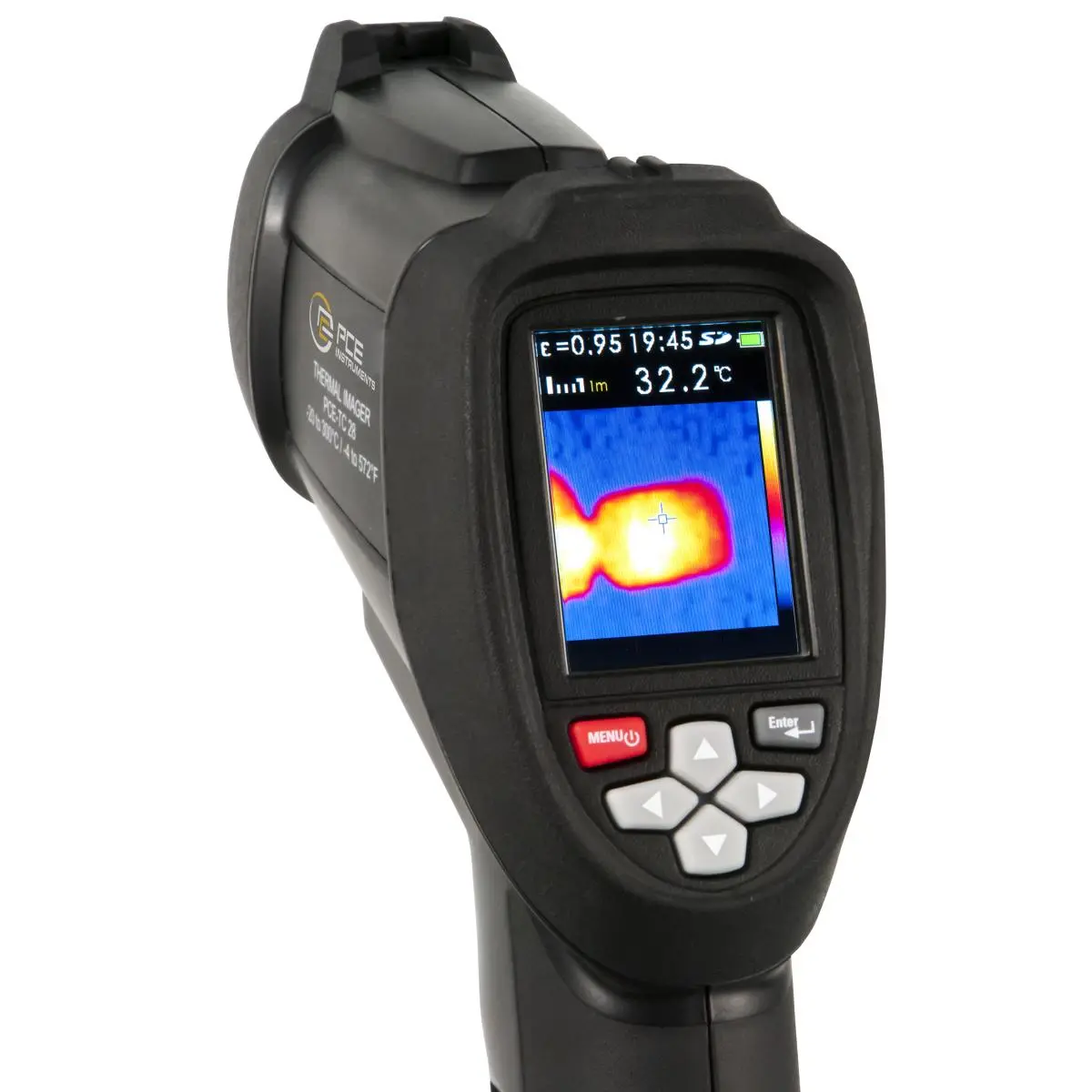

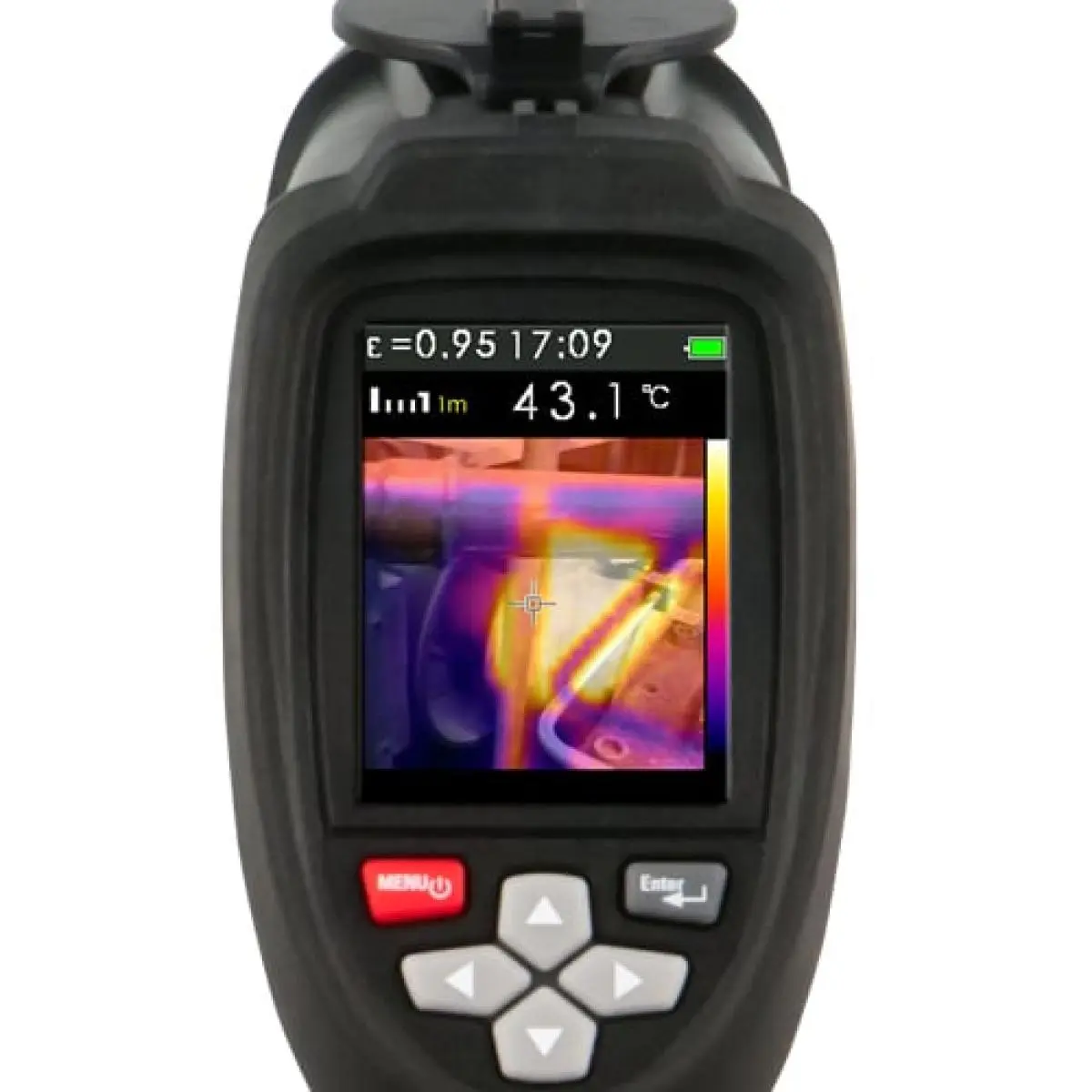

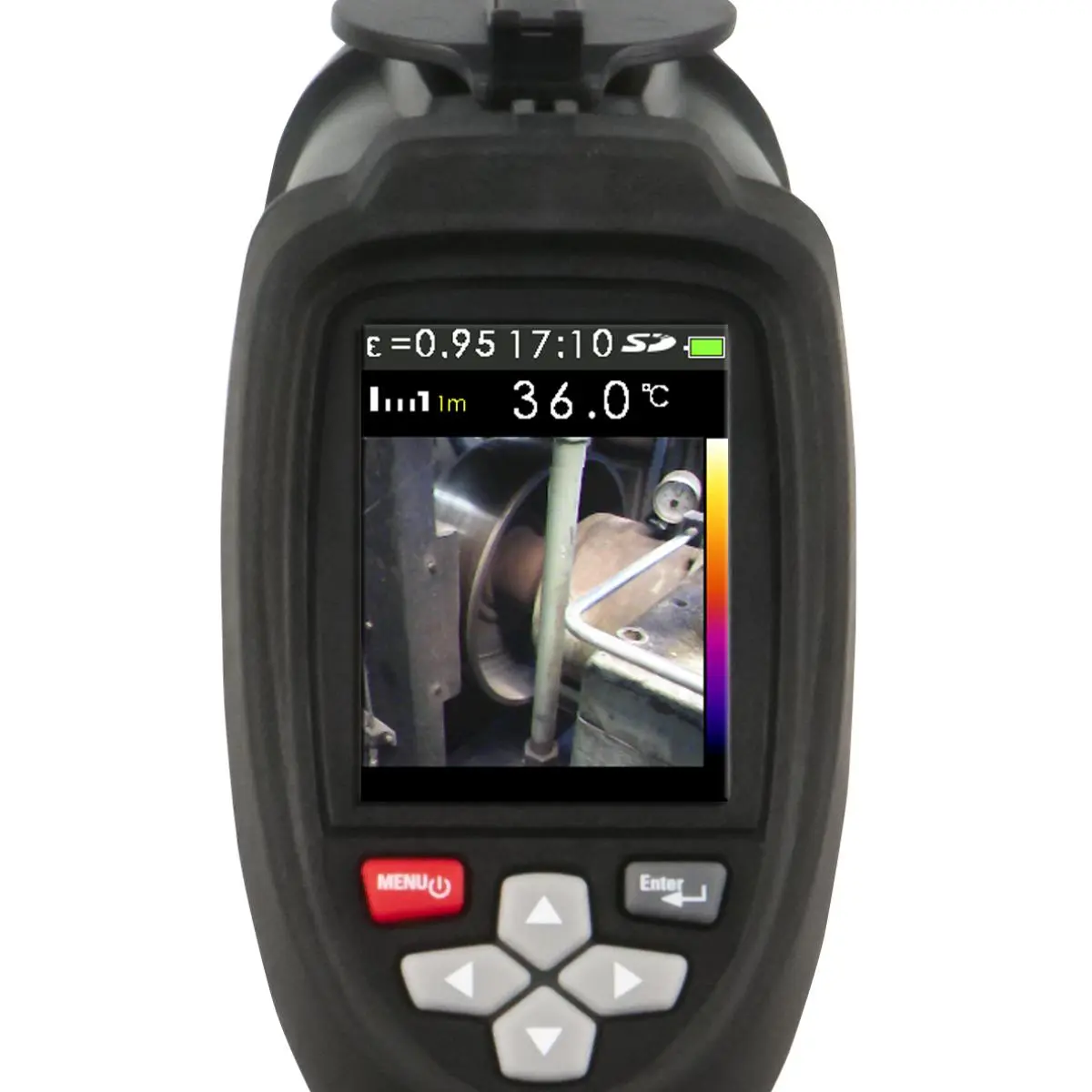

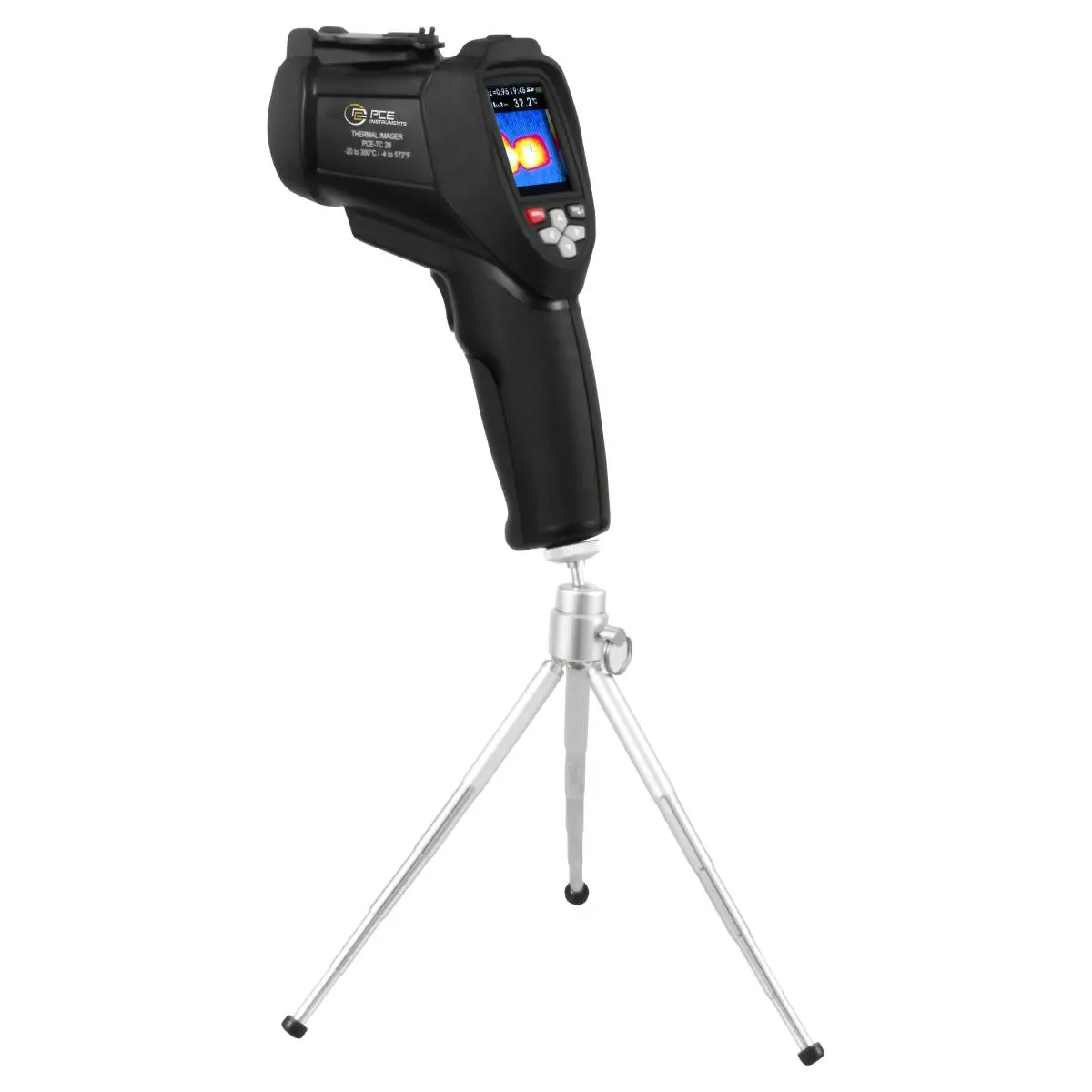

The infrared camera was designed for taking non-contact temperature measurements. To get accurate readings, the emissivity of the infrared camera can be adjusted, depending on the operation purpose. Besides taking infrared images, the infrared camera can also take normal pictures, as well as a mixture of both, due to the built-in digital camera. This makes it easier for the operator to aim at the target and to recognize and locate hotspots.

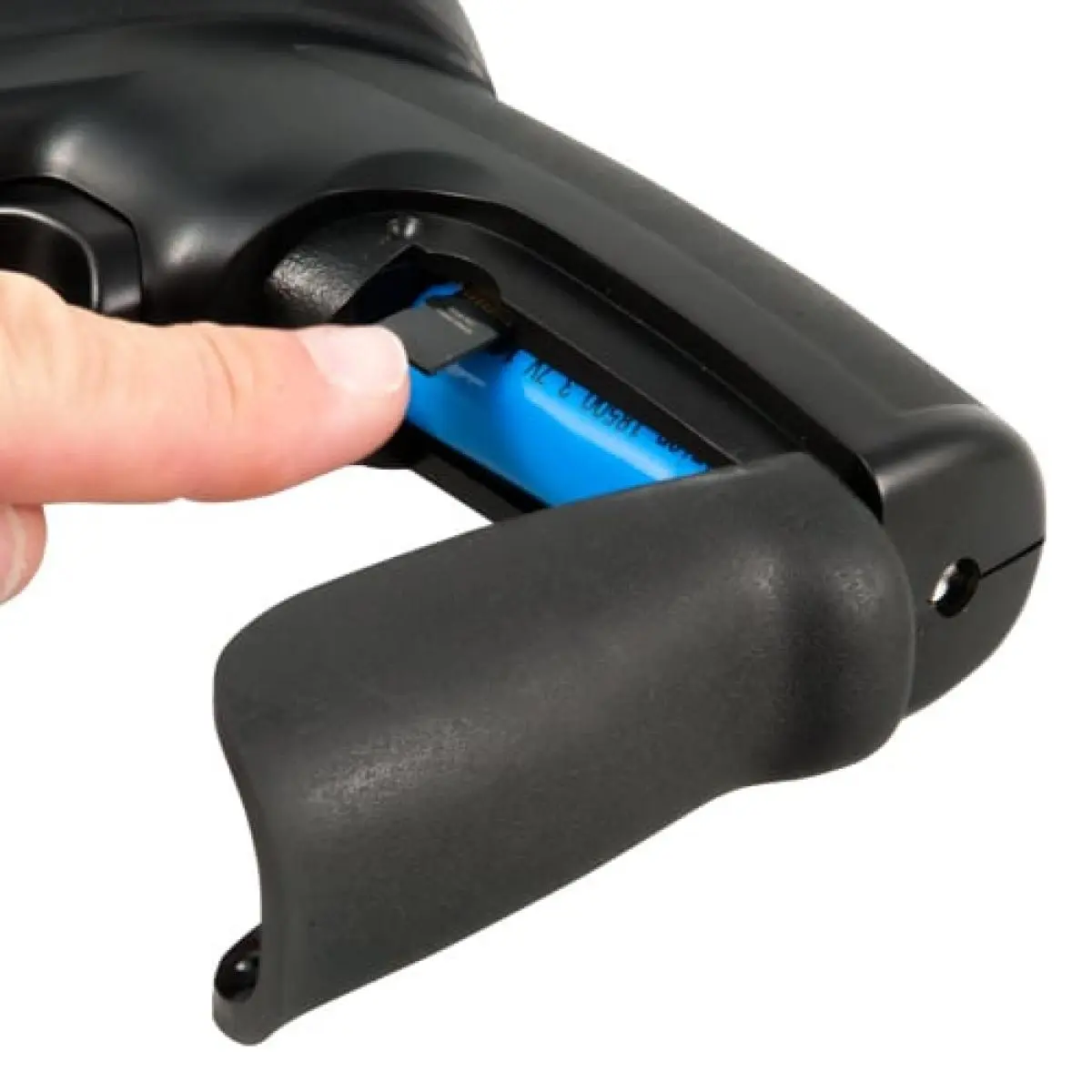

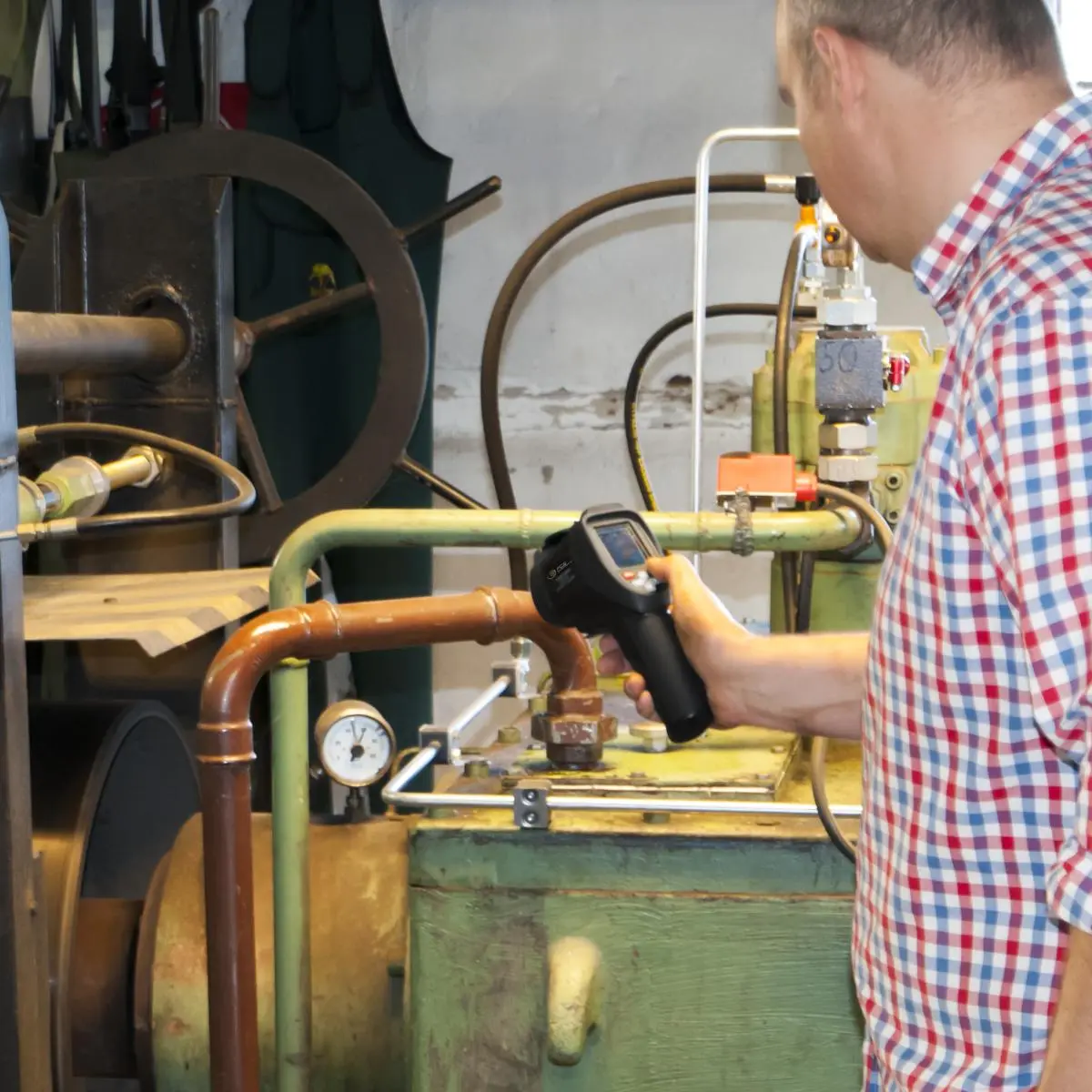

The infrared camera is well-suited for a large variety of applications. This includes monitoring of machinery, building inspection or different applications in the hobby and leisure domain, for example. The infrared camera comes with a built-in SD card slot for Micro SD cards. The device supports different memory card capacities. It is possible to store up to 6000 images per gigabyte on the SD card of the infrared camera.
| Infrared temperature | |
| Measuring range | -20 … +600 °C |
| Resolution | 0,1 °C |
| Accuracy | ±2 % / ±2 °C |
| General technical data | |
| Display type | LCD |
| Display size | 2,2 in |
| Display resolution | 320 x 240 pixels |
| Storage medium | Micro SD card |
| Storage capacity | 8 GB |
| Memory capacity (additional information) | can save 6000 images per GB |
| Interface | Mini-USB, Micro SD card |
| Camera resolution | 32 x 31 pixels |
| Emissivity from/to | 0.7 … 1 |
| Wavelength range | 8 … 14 µm |
| Field of vision (FOV) | 33 x 33 ° |
| Colour palette | Iron, Rainbow, white-black (+inverted), Hot metal |
| Menu language | English, Italian, Spanish, German, French |
| Protection class (device) | IP20 |
| Power supply | 100 … 240V AC | 50/60 Hz, 0.25 A |
| Connector type | Device-europlug |
| (Rechargeable) battery | 1 x 3,7 V internal , Lithium-ion battery |
| Capacity | 1400 mAh |
| Performance | 5,18 |
| Operating conditions | 0 … 50 °C , 10 … 90 % RH |
| Storage conditions | -20 … 60 °C , 10 … 90 % RH |
| Dimensions ( L x W x H ) | 230 x 132 x 65 mm |
| Weight | 360 g |
