Magnetometer PCE-MFM 3000
Portable handheld AC / DC magnetic field detector

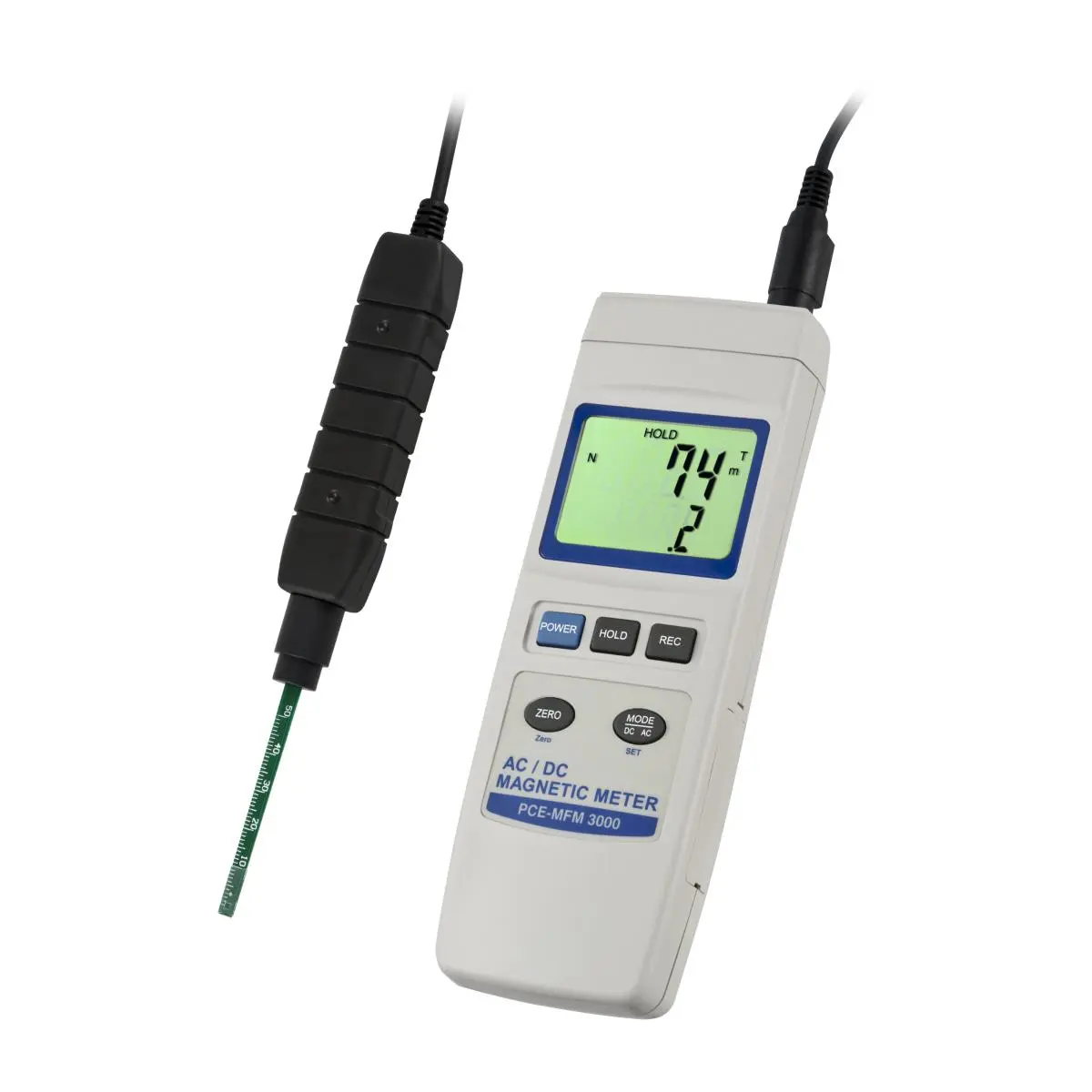

The PCE-MFM 3000 is a handheld magnetometer that detects both static (DC) permanent magnet (rare earth) magnetic and dynamic (AC) electromagnetic fields (EMFs) and displays measurement results in gauss (G) or milli Tesla (mT). This portable magnetometer comes with an external sensor and features an RS-232 port for downloading data to a PC.
Meter can be calibrated by an ISO lab to verify accuracy, see accessories tab for information.
– Measurement range: 0 … 30000 G / 0 … 3000 mT
– Accuracy: ± 5%; + 20 digits (static) / + 10 digits (dynamic)
– Resolution: 0.1 G / 0.01 mT
– Detects both static (DC) permanent magnetic and dynamic (AC) electromagnetic
fields (EMFs)
– Displays measurement results in gauss (G) or milli Tesla (mT)

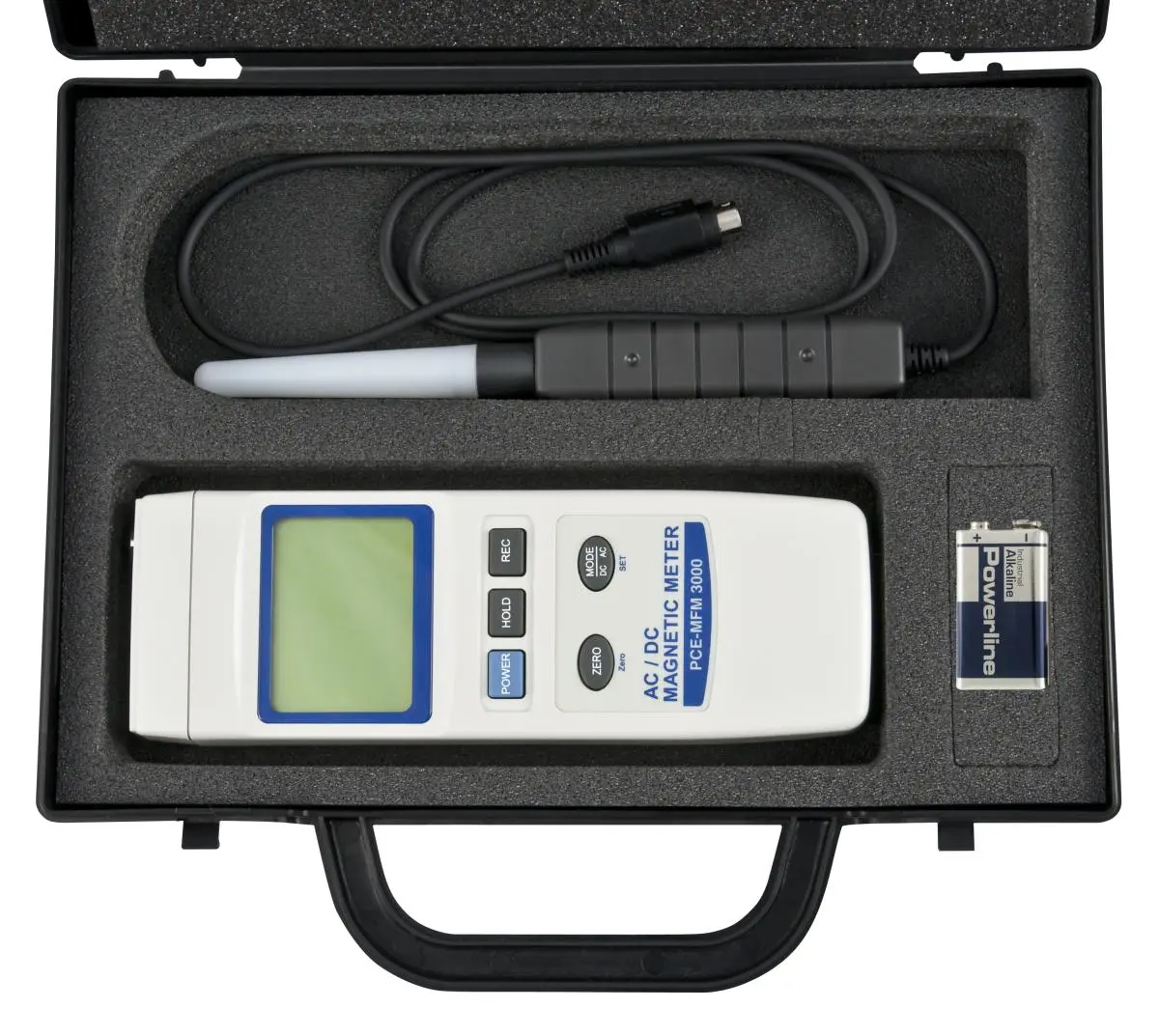

– Comes with an external sensor

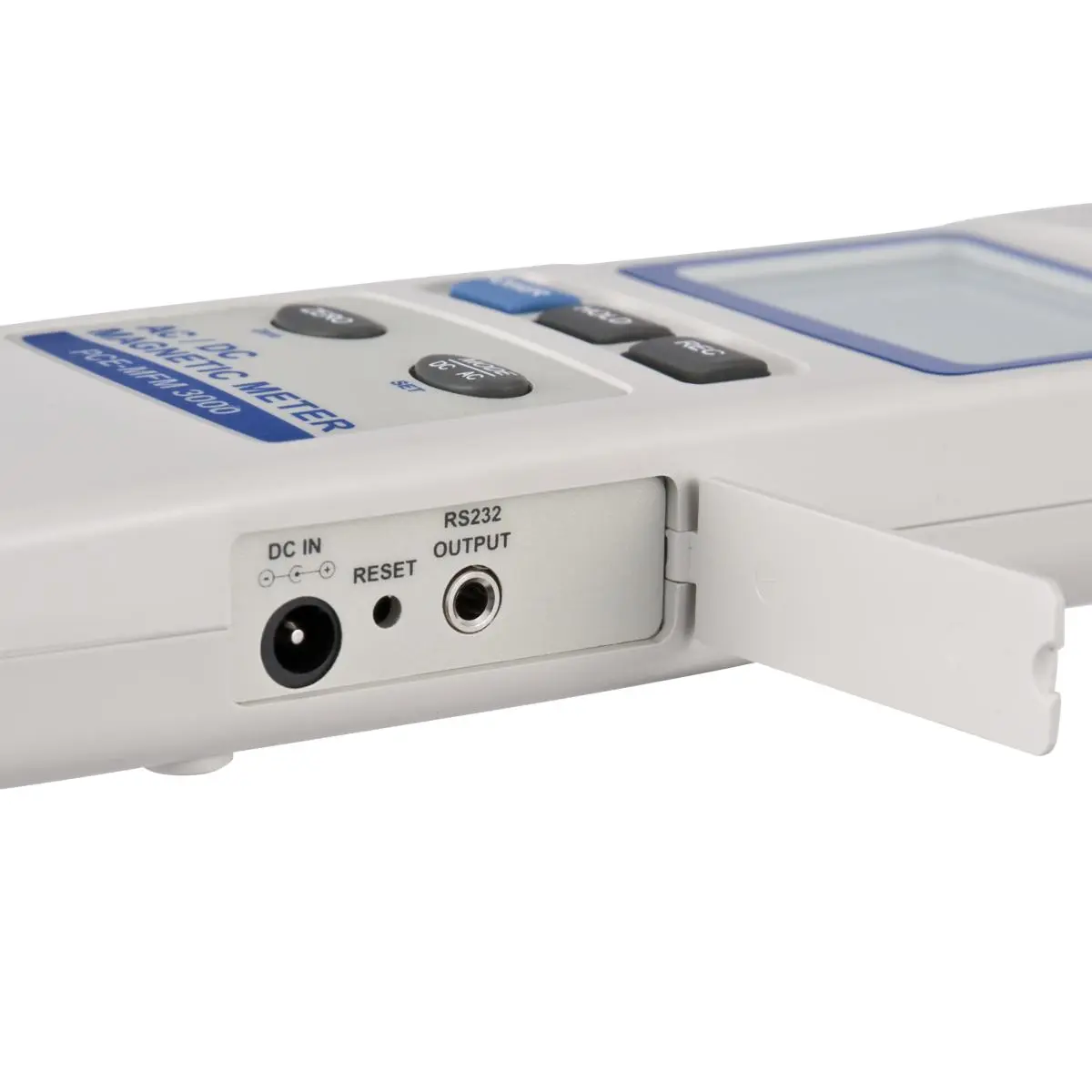

– Features an RS-232 port for downloading data to PC
– Max, min, data hold and auto shutdown power-saving functionality
– Ideal tool for checking magnetic valves, relays and air-core transformers
– Useful for assessing permanent magnets and rare earth magnets made of
Neodymium Iron Boron (NdFeB), Samarium Cobalt (SmCo), Alnico and Ferrite (also
known as ceramic)
– The external sensor’s small, flat tip allows easy access through gaps and
into tiny spaces

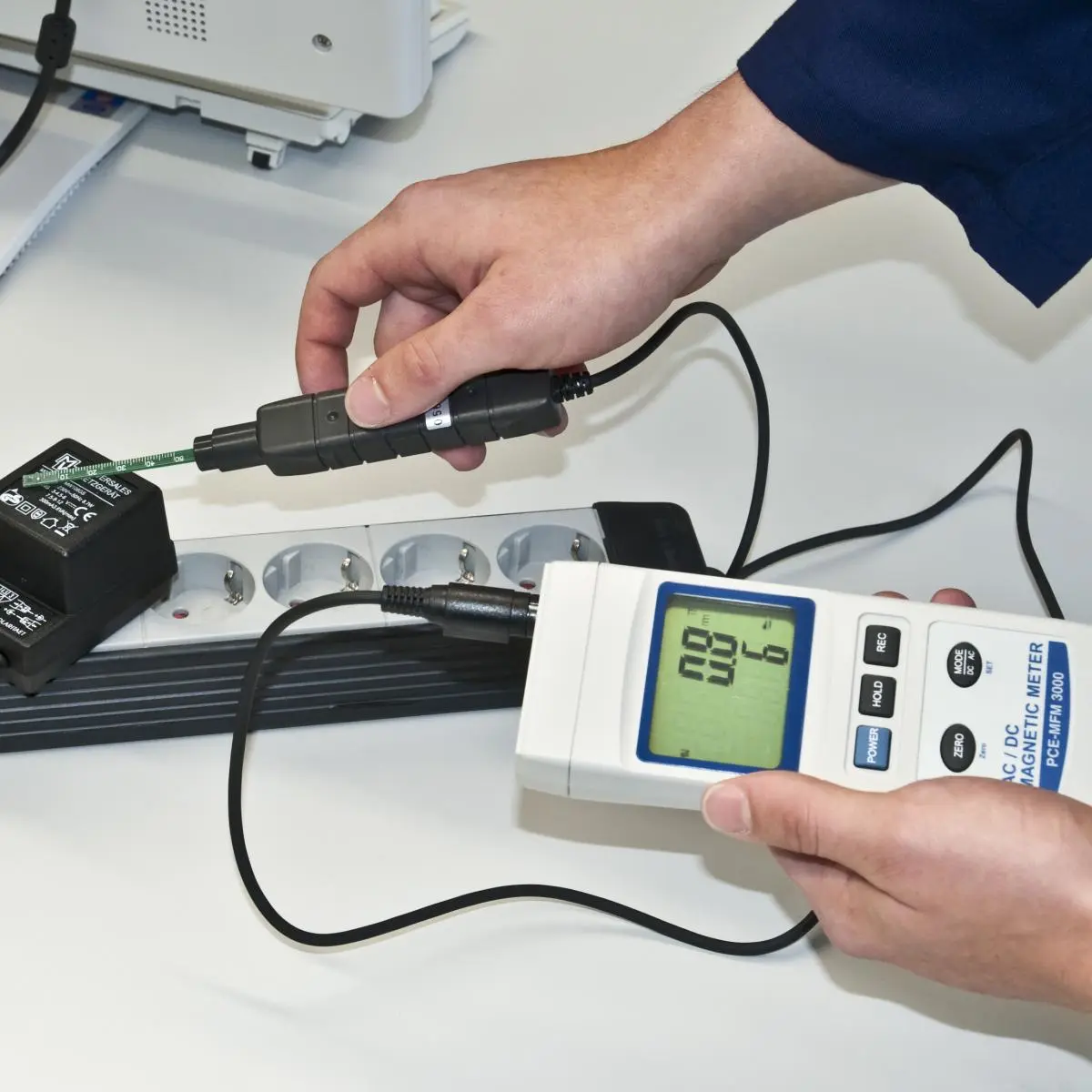

– Measures through casings, coverings and housings, eliminating the need to
dismantle parts for inspection
| Magnetic field AC | |
| Measuring range | 0 … 150 mT |
| Resolution | 0,01 mT |
| Accuracy | ±5% v. Mw. +20 digits (at 23 ±5°C) |
| Frequency range | 50 … 60 Hz |
| Magnetic field AC | |
| Measuring range | 0 … 1500 mT |
| Resolution | 0,1 |
| Accuracy | ±5% v. Mw. +20 digits (at 23 ±5°C) |
| Magnetic field AC | |
| Measuring range | 0 … 1500 g |
| Resolution | 0,1 g |
| Accuracy | ±5% v. Mw. +20 digits (at 23 ±5°C) |
| Magnetic field AC | |
| Measuring range | 0 … 15000 g |
| Resolution | 1 g |
| Accuracy | ±5% v. Mw. +20 digits (at 23 ±5°C) |
| Magnetic field DC | |
| Measuring range | 0 … 300 mT |
| Resolution | 0,01 mT |
| Accuracy | ±5% v. Mw. +10 digits (at 23 ±5°C) |
| Magnetic field DC | |
| Measuring range | 0 … 3000 mT |
| Resolution | 0,1 mT |
| Accuracy | ±5% v. Mw. +10 digits (at 23 ±5°C) |
| Magnetic field DC | |
| Measuring range | 0 … 3000 g |
| Resolution | 0,1 g |
| Accuracy | ±5% v. Mw. +10 digits (at 23 ±5°C) |
| Magnetic field DC | |
| Measuring range | 0 … 30000 g |
| Resolution | 1 g |
| Accuracy | ±5% v. Mw. +10 digits (at 23 ±5°C) |
| General technical data | |
| Measuring functions | MIN, MAX, HOLD |
| Measuring direction | Uniaxial |
| Frequency | 50 … 60 Hz |
| Display type | LCD |
| Measuring rate | 1 Hz |
| Sensor | Hall sensor |
| Dimensions | Probe: 195 x 25 x 19 mm |
| Menu language | English, English (GB) |
| Protection class (device) | IP20 |
| (Rechargeable) battery | 1 x 9 V 9V block , Alkali-manganese |
| Capacity | 640 mAh |
| Operating conditions | 0 … 50 °C , 0 … 85 % RH |
| Storage conditions | 0 … 50 °C , 0 … 85 % RH |
| Dimensions ( L x W x H ) | 198 x 68 x 30 mm |
| Weight | 275 g |
