Oxygen Meter PCE-DOM 10

Order no.:

PCE-DOM 10

GTIN (EAN):

4250348722744

Price (exclude VAT)

Price (include VAT)

Delivery time:

1-2 working days

Description

Oxygen meter PCE-DOM Series
Oxygen meter with exchangeable probes / Automatic temperature compensation / Oxygen saturation and the sample temperature / For mobile use

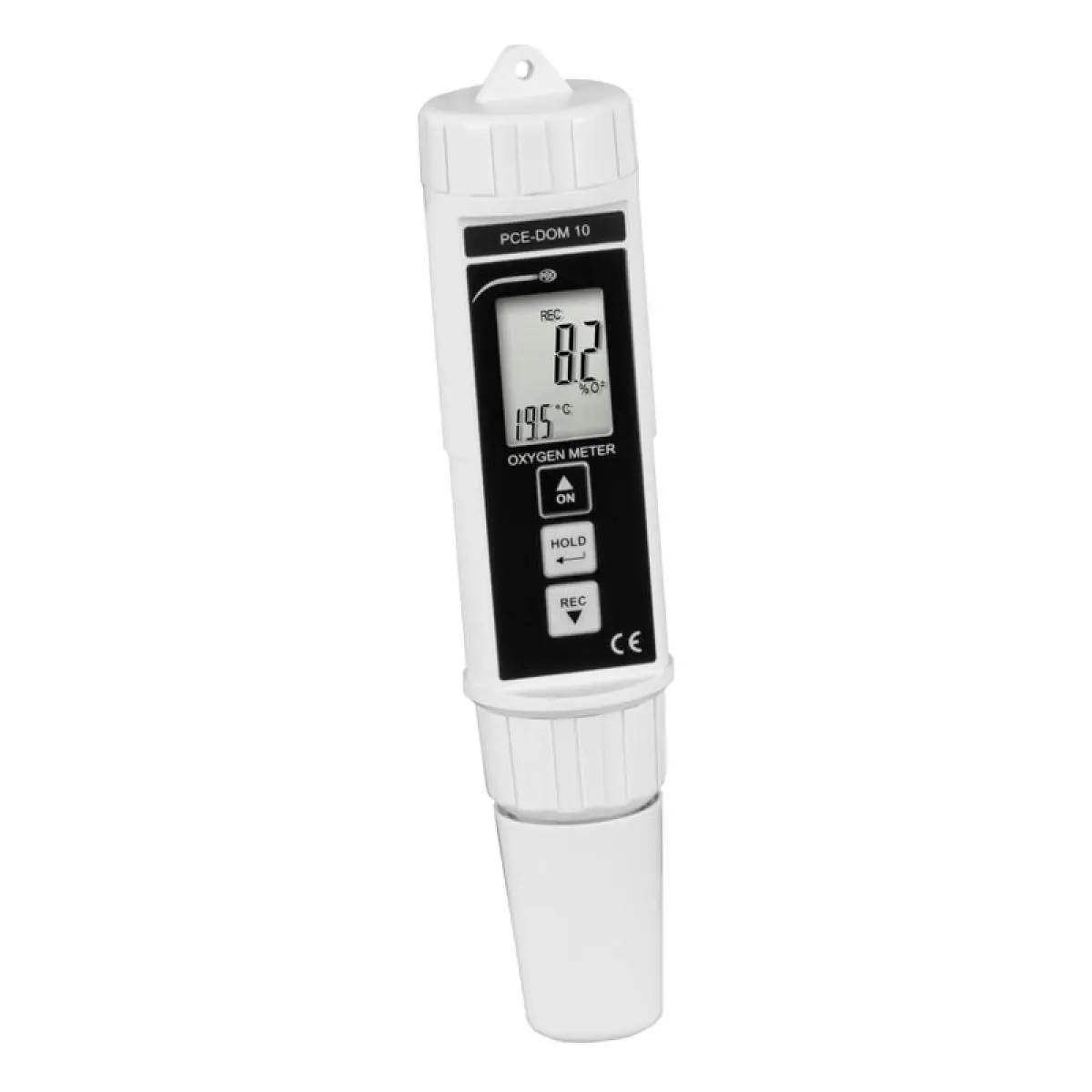

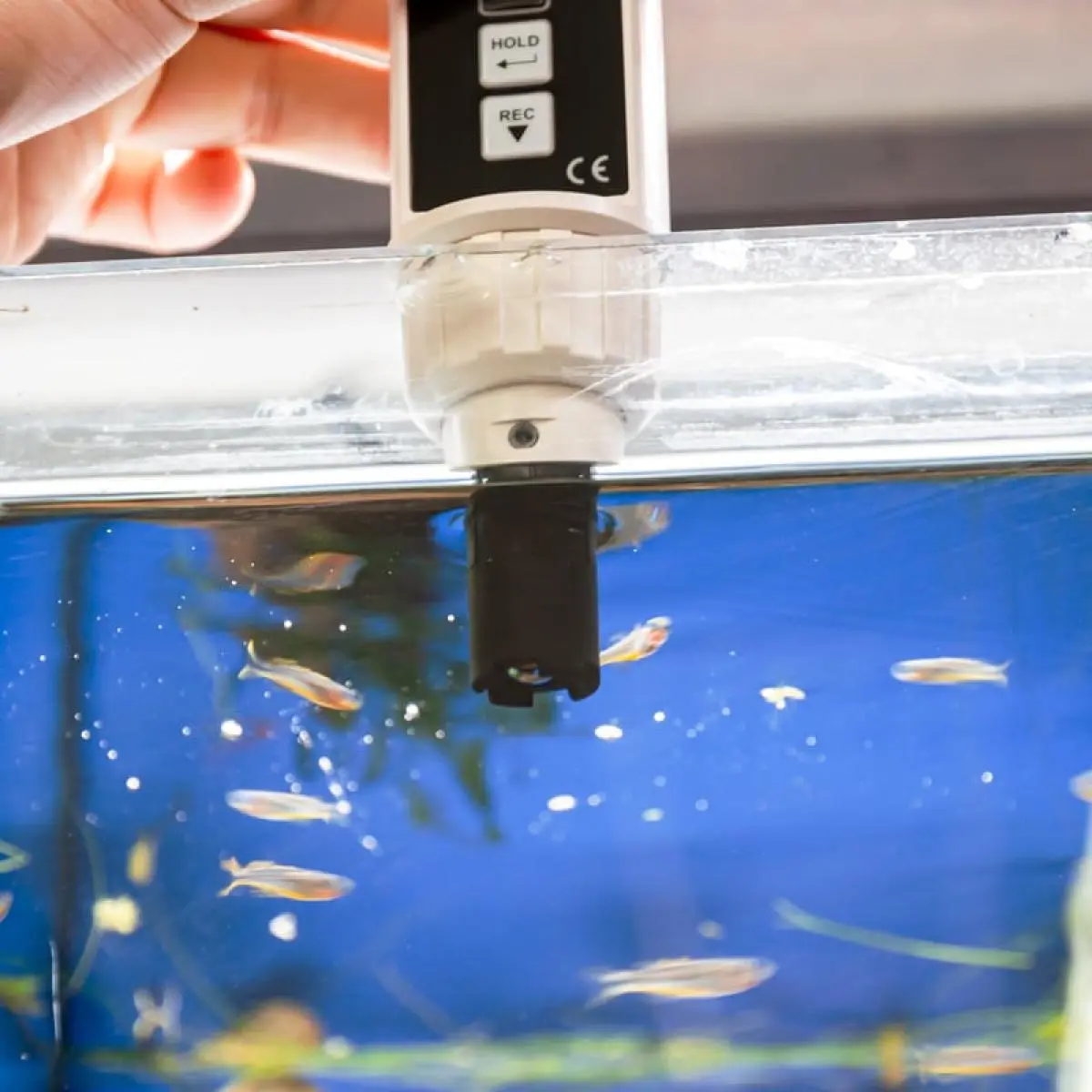

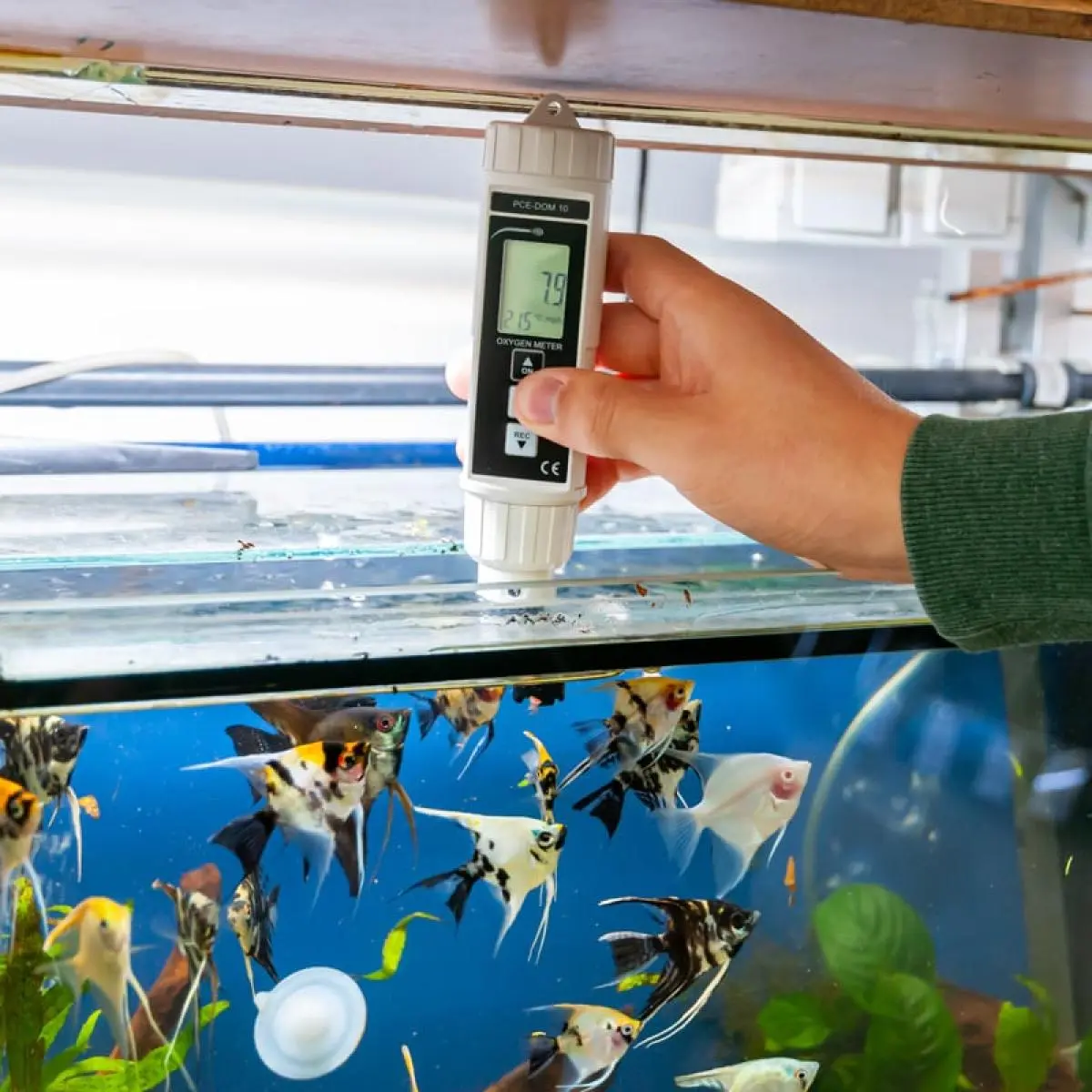

The oxygen meter PCE-DOM 10 is a measuring device to determine the oxygen content both in liquids and in the ambient air. With this oxygen meter, water analysis can be carried out on the oxygen content in a very short time and with an integrated temperature sensor, the oxygen meter is able to carry out an automatic temperature compensation. As a result, the oxygen meter is also used for analyzing the oxygen content of lakes or streams, as strong temperature fluctuations can occur here, which falsify the measurement result. This oxygen meter is also used, for example, in fish farming.
Before the initial start-up, the sensors on the oxygen meter are initially dry. In order to carry out a measurement, the sensors of the oxygen meter must be provided with the electrolyte supplied. Even if the membrane is possibly damaged, it can be replaced with the oxygen meter in just a few steps. This ensures that the oxygen meter is ready for use again within a very short time.

Highlights

– Measuring range up to 20 mg / L
– For oxygen analysis
– Temperature compensation up to 50°C / 122°F
– Electrolyte included
– For measurements in liquids and in air

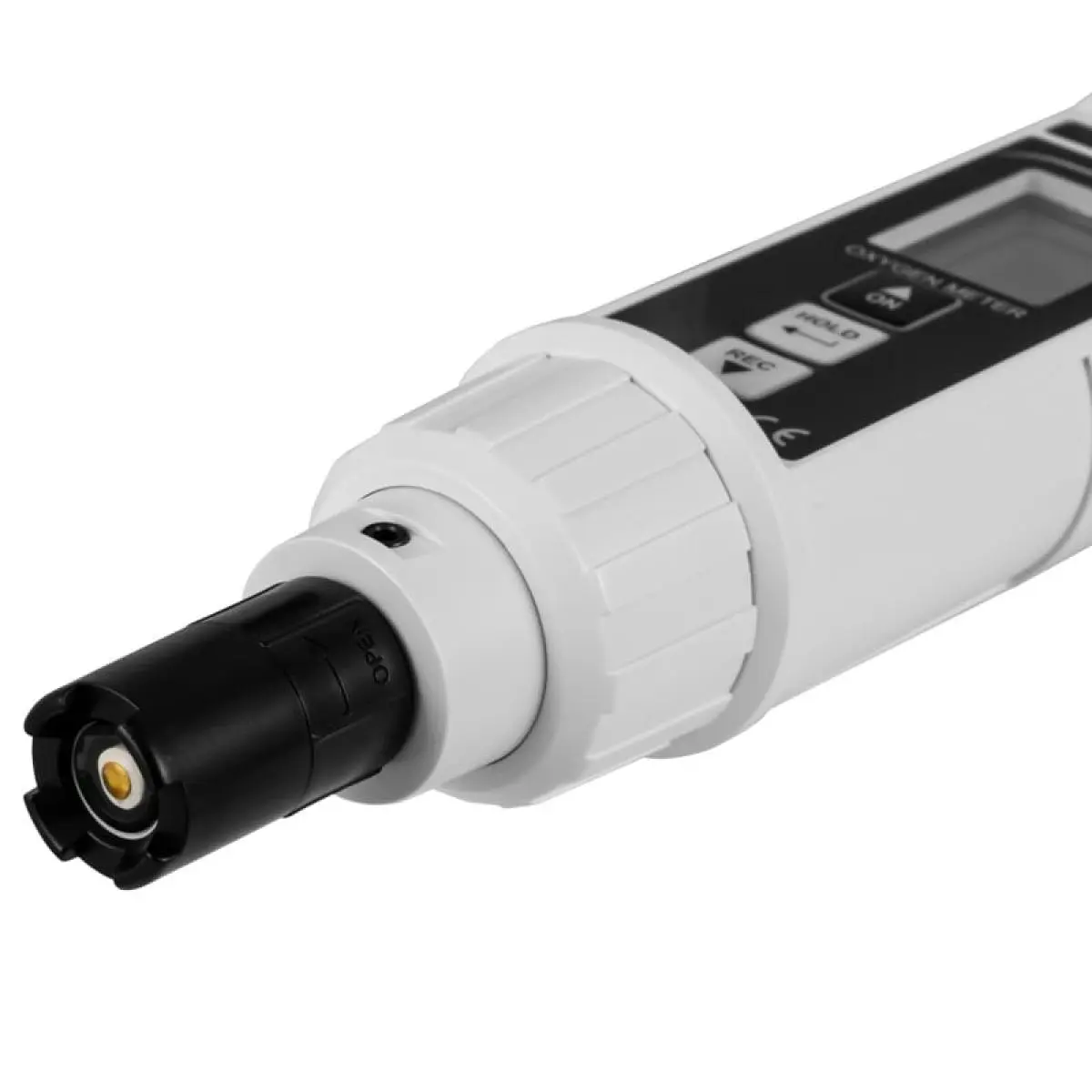

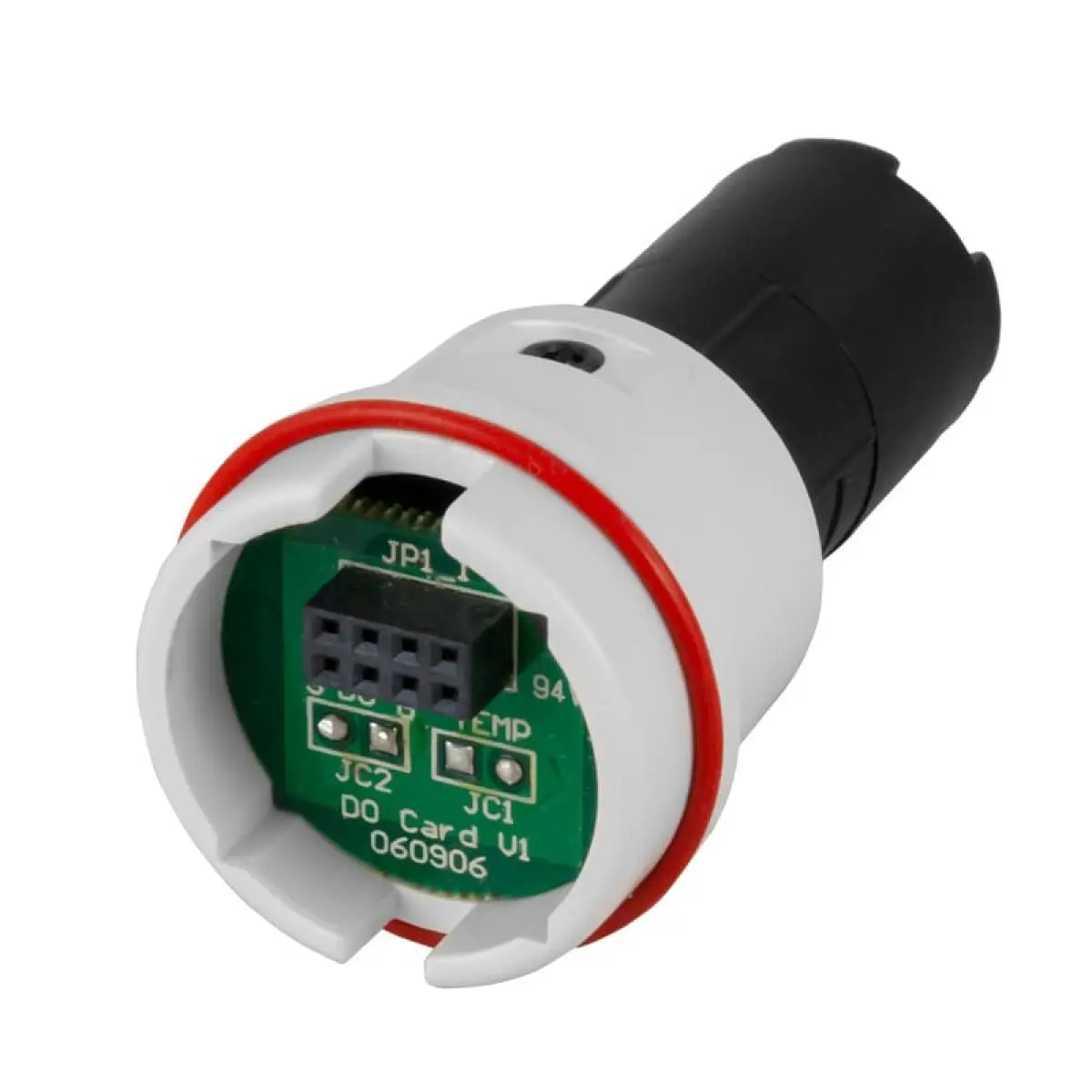

– Exchangeable oxygen sensor

Specification

Oxygen
Measuring range 0 … 20 mg/l
Resolution 0,1 mg/l
Accuracy ±0.4 mg/l
Oxygen
Measuring range 0 … 100 %
Resolution 0,1 %
Accuracy ±0.7%
Temperature
Measuring range 0 … 50 °C
Resolution 0,1 °C
Accuracy ±0.8 °C
Temperature
Measuring range 32 … 122 °F
Resolution 0,18 °F
Accuracy ±1.44 °F
General technical data
Measuring functions MIN, MAX, HOLD
Temperature compensation automatic

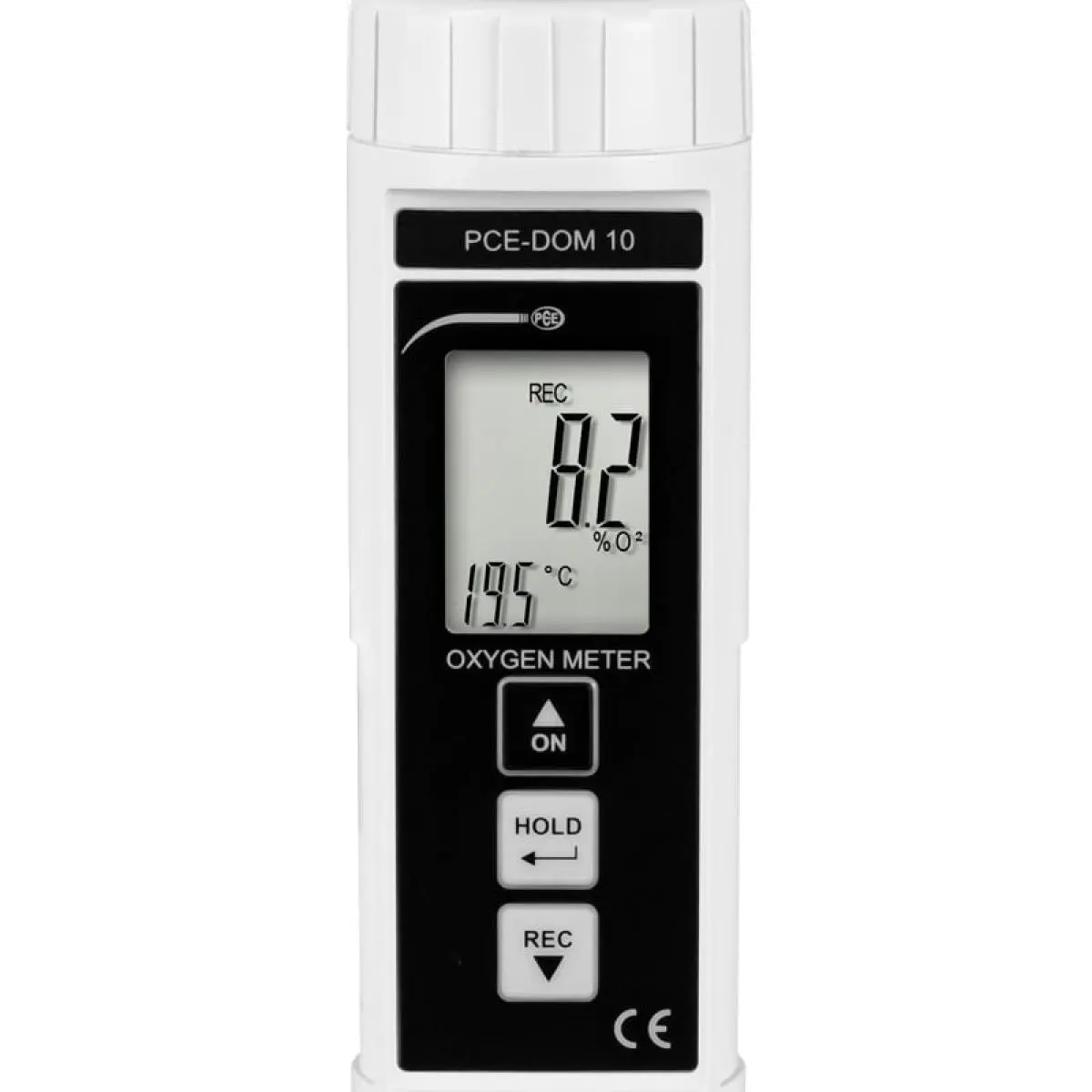

Display type LCD
Display size 1,6 in
Automatic power-off 15 min
Protection class (device) IP21
(Rechargeable) battery 4 x 1,5 V AAA battery , Alkali-manganese
Capacity 1200 mAh
Operating conditions 0 … 50 °C , 0 … 80 % RH
Storage conditions 0 … 50 °C , 0 … 80 % RH
Dimensions ( L x W x H ) 180 x 40 x 40 mm
Weight 176 g
