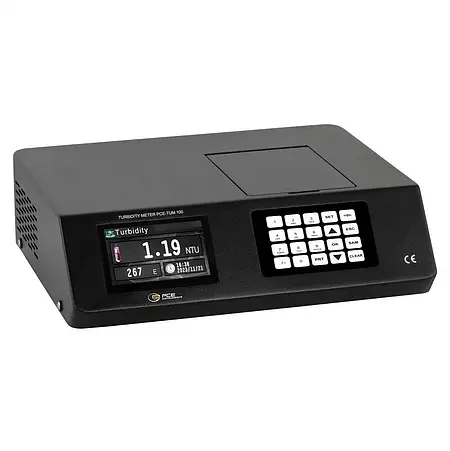

The precision of the photometer ensures accurate measurements in all relevant applications. With five factory-saved calibration points, the photometer offers a ready-to-use solution for different environments. In addition, the photometer offers the option of customised opacity calibration. With up to five calibration points, the photometer can be flexibly adapted to specific requirements and measurement conditions.
– Precise measurement
– 5 stored calibration points
– Individual 5-point turbidity calibration possible
– Colour display
– Simple operation
– Internal memory
– USB-A interface for data carriers
– RS232 printer interface
| Turbidity | |
| Measurement range | 0 NTU … +500 NTU |
| Resolution | 0.01 |
| Accuracy | ±5 % FS |
| General technical data | |
| Display type | LED |
| Display size | 4.2 inches |
| Interface | RS232, USB A |
| Light source | LED @ 850 nm |
| Number of calibration points | 5 |
| Measurement method | 90 ° |
| Menu language | English |
| Protection class (device) | IP20 |
| Power supply | 110-220V, 50-60Hz |
| Plug type | Cold plug |
| Weight | 3.68 kg |
| Dimensions (L x W x H) | 37 cm x 31 cm x 11.5 cm mm |
| Other dimensions | Cuvette Ø x height 25 x 65 mm |
| Operating conditions | 16 … 35 °C , 45 … 80 % RH |
| Storage conditions | 16 … 35 °C , 45 … 80 % r.H |
| Instruction languages | English |
