Power Analyzer PCE-830-1

Order no.:

PCE-830-1

GTIN (EAN):

4250348700407

Price (exclude VAT)

Price (include VAT)

Delivery time:

1-2 working days

Description

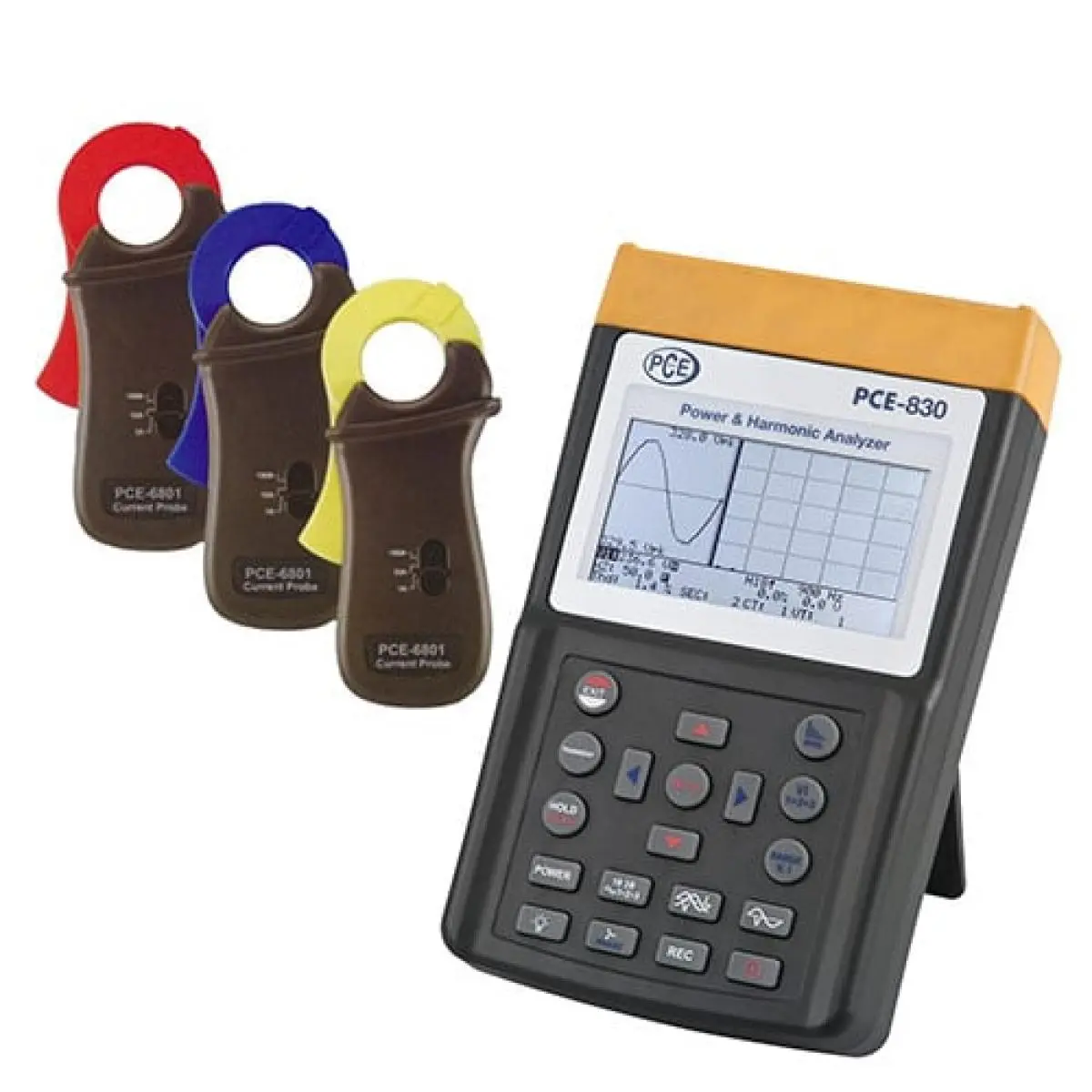

PCE-830-1 Power Analyzer
with 3 phases / Measures power and analyses harmonics / Includes memory, interface, and software

The PCE-830 Power Analyzer is used for measuring one to three phases of electrical quantities for alternating current (AC). This 3-Phase Power Analyzer also measures parameters such as voltage, current, frequency, harmonics, and power as well as indicating, according to standard EN50160, harmonic values, interharmonics, and asymmetrics. Interference, such as interruptions, leaks, overloads, or transience (from 16 µs) are detected with their corresponding values. The backlit LCD, with high resolution, can show up to 35 parameters simultaneously. Up to 3 clips can be attached at the same time to the Power Analyzer. In data logger mode, it can save up to 17,470 readings (3 phases / 4 conductors), in a simpler set up (1 phase / 2 conductors) it can save up to 52,400 readings, split into 85 groups. All this makes the PCE-830 Power Analyzer the ideal instrument for taking measurements over long durations. Measurement values obtained can be sent to a computer and be processed with the included analysis software. The device comes with everything needed to be measuring and analysing from the moment it arrives. Although the Power Analyzer comes calibrated from the manufacturer, an optional laboratory calibration and certificate, that meets ISO standards, can be ordered separately with the device or when a recalibration is required.

Highlights

– Analysis of a network of 3 phases / 4 conductors, 3 phases / 3 conductors, 1

phase / 2 conductors, 1 phase / 3 conductors

– Measures effective real value (V 123 and I 123)

– Measures active power (W, KW, MW, GW)

– Measures apparent and reactive power (KVA, KVAR)

– Power Factor (PF), phase angle (Φ)

– Measures energy and work (Wh, KWh, KVARh, PFh)

– Measures current from 0.1 mA to 3000 A, allowing for the reserve power of a

factory to be determined

– Large LCD that shows up to 35 parameters simultaneously (3P4W [=3 phases/4

conductors])

– CT conditions (1 to 600) and PT (1 to 3000) are programmable

– Indicates current wave forms and voltage overlap.

– 512 KB of memory with programmable intervals to save data every 2 to 3000

seconds, 17,470 readings using the system of 3 phases / 4 conductors

– Indicates wave forms, efficiency parameters, and harmonic distortion

– Backlit LCD with dot matrix

– Average power (AD in W, KW, MW)

– Maximum power (MD in W, KW, MW) with the programmable period

– Analysis of harmonic distortion up to a curvature of 99

– Indication of up to 50º form of harmonic wave

– Indication of the wave form with maximum value (1024 readings / period)

– Analysis of absolute distortion (%THD-F)

– Diagram of graphic equilibrium with parameters of a 3 phase system

– Detects up to 28 transistors (time and cycles) with a programmable threshold

(%)

– Relation of 3 phases of voltage or asymmetrical current (VUR)

– Factor of 3 phases of voltage and asymmetrical current (d0%, d2%)

– USB port (optically insulated)

– Integrated timer and calendar to record data

– Maximum diameter of the electrical conductor for the amp clamp: the PCE-6801

~30 mm / 1.2 in, PCE-6802 ~55 mm / 2.2 in, PCE-3007 ~170 mm / 6.7 in

Specification

AC voltage
Measuring range	20 … 500 V
Accuracy	±0.5 % ±5 digits

Alternating current AC
Measuring range	0,04 … 100 A
Accuracy	±0.5 % ±0.05 A
Overload	Overload protection AC 200 A

Phase angle
Measuring range	-180 … +180 °
Accuracy	±1 °

Power factor
Measuring range	0 … 1
Accuracy	±0.04

Frequency
Measuring range	45 … 65 Hz
Resolution	0,1 Hz
Accuracy	0.1 Hz

General technical data
Measuring functions	HOLD
Frequency	50 … 60 Hz
Display type	LCD with backlight
Display size	4,9 in
Storage medium	Internal memory
Storage capacity	52420 Values
Storage interval from	2 s
Storage interval to	3000 min.
Interface	RS232, USB
Standard(s)	IEC 61010
Maximum cable diameter	30 mm
Safety standard	CAT III 600V
Menu language	English
Power supply	12V
Connector type	Device-europlug
(Rechargeable) battery	8 x 1,5 V AA battery , Alkali-manganese
Capacity	3000 mAh
Operating conditions	-10 … 50 °C , 0 … 75 % RH
Storage conditions	-20 … 60 °C , 0 … 75 % RH
Dimensions ( L x W x H )	257 x 155 x 57 mm
Other dimensions	Current clamp PCE-6801 210 x 62 x 36 mm
Weight	1160 g
Other weights	Current clamp PCE-6801 200g
